FER/View 3.0 - A general postprocessor for numerical analysis
Main capabilities :
- Available not only for the general finite element static or dynamic
analysis, but also for the model with variable numbers of nodes and elements
during computation (i.e. using remeshing method).

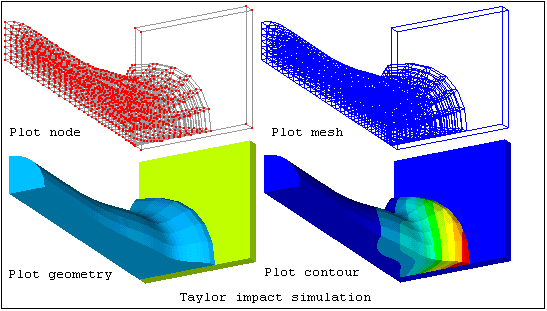

- Node, Element mesh and Geometry shape plot.

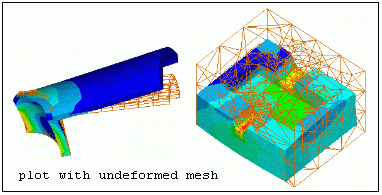

- Display mesh deformation. All visualization techniques use the deformed
mesh with undeformed mesh overlay.
- Display different colours according to the element property.

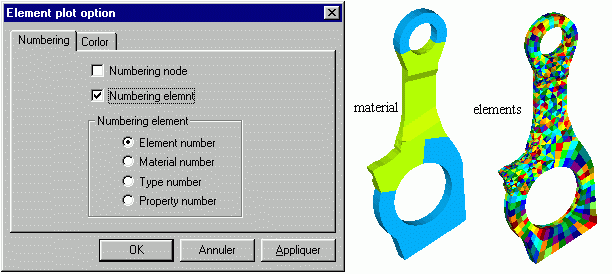

- Display node, element or material number.

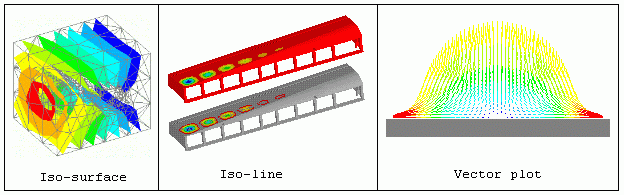

- Contours, Iso-line, Iso-surface and Vector plot.
- Display minimum and/or maximum values of data for the current time step
or for all time steps.
- Change the colour division number for contour or iso-line etc.
plot.

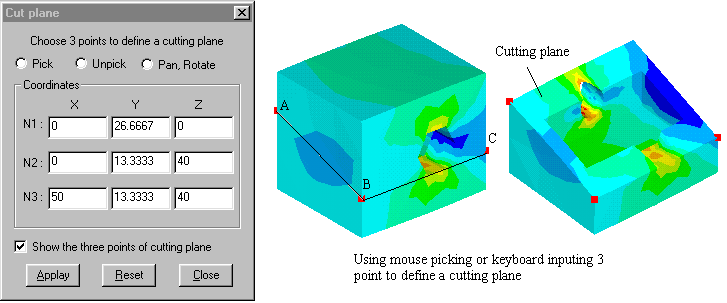

- Cutting plane plot.
- Add
or cancel light effects.

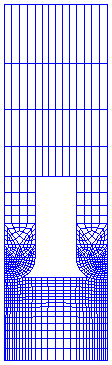

- Animation in any case of display mode.

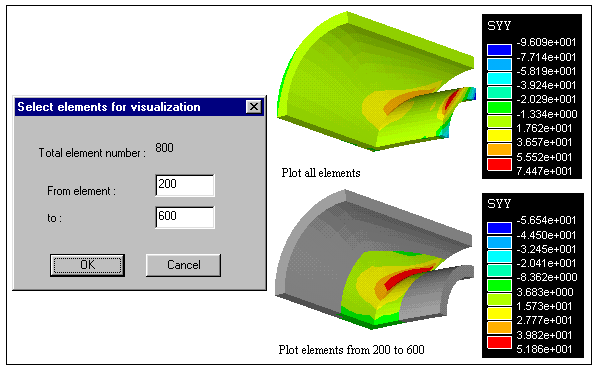

- Choose some selected elements for display.
- Display time history of multiple data.

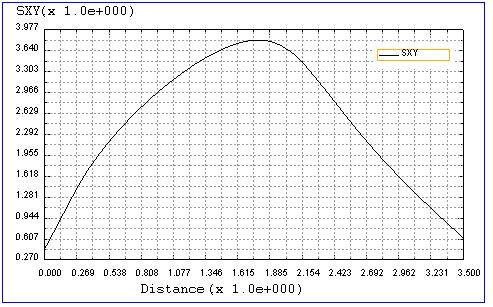

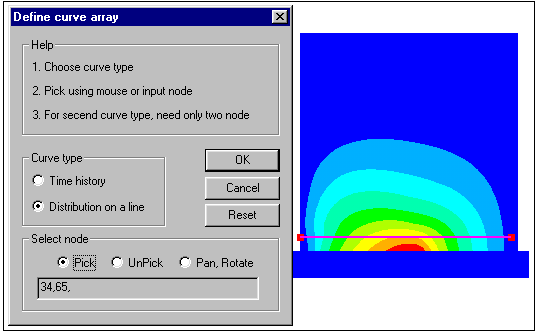

- Display the distribution curve of data on a line path.
- Mouse operation for rotation, pan and zoom-box as well as node
picking.
- File
operation about saving and printing images and curves (.xls).
Plot mode :
Animation
Numbering and Color
Light effect
Plot selectted elements

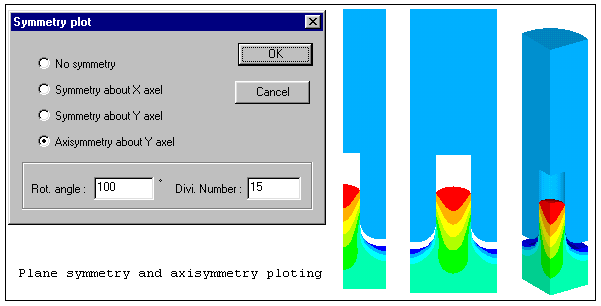

Symmetry plot
Section cutting plot
X-Y Curve plot
