The main capabilities of FER/Mesh 1.0 include :

• Creation of geometrical entities: keypoint, straight line, Bezier and Spline lines, circle, rectangle and polygon etc.,
• Easy operation : drawing directly on the screen or inputing by the keyborad,
• Mesh types : structured and unstructured,
• Element types: 3, 4, 6 and 8 node elements.

Geometrical objects :

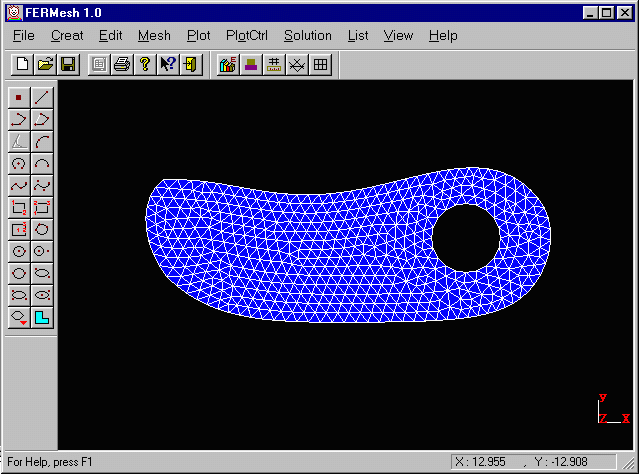

A mesh example :
